NeurerProcessor Class Reference

Detailed Description

The NeurerProcessor class.

*  |AbstractTopology
*  |--/scProcessor
*  |----/AbstractProcessor
*  |------/NeurerProcessor
*

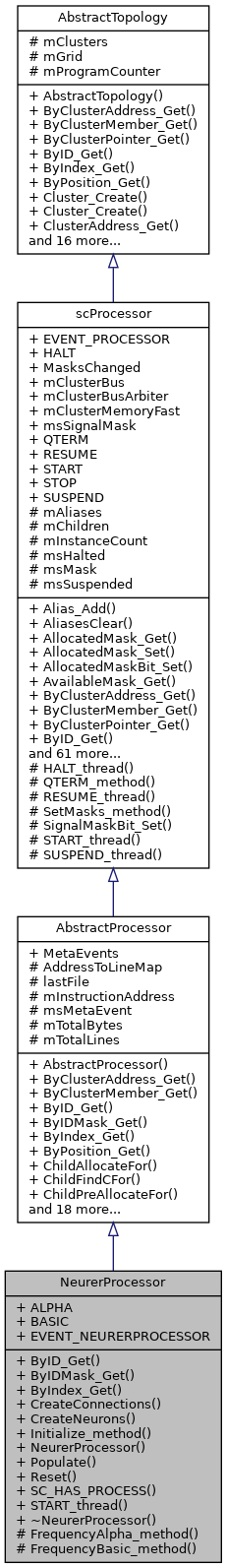

+ Inheritance diagram for NeurerProcessor:

Public Member Functions

AbstractNeurer * ByIDMask_Get (SC_CORE_MASK_TYPE Mask, unsigned int H)
 Return a pointer to gridpoint of the core given by its mask.

- Public Member Functions inherited from AbstractProcessor
AbstractCore * ByIDMask_Get (SC_CORE_MASK_TYPE Mask)
 Return a pointer to gridpoint of the core given by its mask.

AbstractCore * ChildAllocateFor (scGridPoint *Parent, CorePreference_t CPT=cpt_AnyCore) override
 Allocate a core with preference.

virtual scHThread * doReboot (SC_ADDRESS_TYPE A, HThreadPreference_t hpt_Any)
 !

void Execute_thread (void)
 Execute metacode.

- Public Member Functions inherited from scProcessor
bool Alias_Add (string A, scHThread *HT)

scGridPoint * ByIndex_Get (const int X, const int Y)
 Get an scGridPoint by its indices.

scGridPoint * ByPointer_Get (scGridPoint *GP)

scGridPoint * ChildFindFor (scGridPoint *Parent, CorePreference_t CPT)
 find an scGridPoint for this parent

scGridPoint * ChildPreAllocateFor (scGridPoint *Parent, CorePreference_t Pref=cpt_AnyCore)
 Allocate a core with preference.

virtual scGridPoint * doQCREATE (scGridPoint *TheParent, scGridPoint *TheChild, SC_GRIDPOINT_MASK_TYPE CloneMask, SC_GRIDPOINT_MASK_TYPE BackLinkMask, CorePreference_t CPT)
 scGridPoint::doQCREATE Create a new QT for TheParent, allocate a core if TheChild is NULL More...

void HandleAliases (string FileName)
 HandleAliases() Handle the special case when aliases are to be read from a file.

void HandleAliasesPass (string FileName, bool Pass2)
 HandleAliasesPass In the first pass, only adds the alias name to the known names. In the second pass, initializes the aliased objects. More...

scHThread * HThreadFindFor (scHThread *Parent, HThreadPreference_t HPT)
 scProcessor::HThreadFindFor More...

void Populate (vector< scGridPoint * > &Specials)

virtual void ReadTheThreeLevels (QString MyGroup)
 ReadTheThreeLevels. More...

string RegisterName_Get (int Index)
 < A generic register name

bool StringOfAliasName_Set (string A, scHThread *H)

- Public Member Functions inherited from AbstractTopology
 AbstractTopology (void)
 AbstractTopology::AbstractTopology. More...

GridPoint * ByClusterAddress_Get (ClusterAddress_t C)
 Get a GridPoint pointer given by its ClusterAddress_t C, a specialized integer (network-like address) More...

GridPoint * ByClusterMember_Get (unsigned short int CN, ClusterNeighbor CM=cm_Head, ClusterNeighbor CP=cm_Head)

GridPoint * ByClusterPointer_Get (GridPoint *P, ClusterNeighbor CM=cm_Head)
 Return the pointer corresponding to the in-cluster member CM of cluster. More...

GridPoint * ByID_Get (const int N)
 Get a gridpoint by its absolute sequence number and thread.

GridPoint * ByIndex_Get (const int X, const int Y)
 Get a gridpoint defined by its indices (!NOT position)

GridPoint * ByPosition_Get (int X, int Y)
 Get a gridpoint by its topological position (NOT index!)

void Cluster_Create (GridPoint *P)
 Create a new cluster at GridPoint P. More...

void Cluster_Create (int X, int Y)
 Create a new cluster at coordinates X,Y. More...

ClusterAddress_t ClusterAddress_Get (GridPoint *P)
 Return the cluster address of the point P.

ClusterAddress_t ClusterAddressFromLinear_Get (int N)
 Return the cluster address of the Nth point.

GridPoint * ClusterHead_Get (unsigned int N)
 Return pointer to the cluster head of the Nth cluster. More...

GridPoint * ClusterHeadOfMember_Get (GridPoint *GP)
 Return the cluster head of GridPoint GP.

ClusterStatus ClusterStatus_Get (GridPoint *P, ClusterNeighbor N)
 Return status of neighbor N relative to GridPoint P.

void ClusterStatus_Set (GridPoint *P, ClusterNeighbor N, ClusterStatus S)
 Set cluster status upon creation. More...

void CreateClusters (void)
 Create clusters from the elements of the rectangular grid. This routine works perfectly ONLY for a 10*6 sized grid!!

string StringOfClusterAddress_Get (GridPoint *GP)
 Return the string describing GridPoint GP in its ClusterAddress_t form. More...


Public Attributes

struct {
   sc_core::sc_event   ALPHA
 < 30 Hz

   sc_core::sc_event   BASIC
 < Provide basic frequencies for neurons, at fixed rate More...

} EVENT_NEURERPROCESSOR
 These events are handled at abstract processor level.

- Public Attributes inherited from scProcessor
scClusterBus * mClusterBus
 The of processor inter-cluster bus-related signals. More...

scClusterBusArbiter * mClusterBusArbiter
 Arbiter of the inter-cluster bus.

scClusterBusMemoryFast * mClusterMemoryFast
 A register-like memory.


Protected Member Functions

void FrequencyAlpha_method (void)
 Provides a signal EVENT_NEURERPROCESSOR.BASIC with frequency 30 Hz.

void FrequencyBasic_method (void)
 Provides a signal EVENT_NEURERPROCESSOR.BASIC with frequency 10 Hz.


Additional Inherited Members

- Protected Attributes inherited from AbstractProcessor
string lastFile
 Remember name of the last object file.

uint32_t mTotalBytes
 No of bytes loaded.

uint32_t mTotalLines
 No of lines read.

- Protected Attributes inherited from scProcessor
TopologyMask_t msMask [MAX_HTHREADS]
 Stores alias names of the gridpoints.

- Protected Attributes inherited from AbstractTopology
vector< GridPoint * > mClusters
 The clustered gridpoints are accessible through their clusters, too.

vector< vector< GridPoint * > > mGrid
 The gridpoints form a 2-dim grid, addressable by their index.

SC_ADDRESS_TYPE mProgramCounter
 The architecture itself has a global program counter.


Member Data Documentation

◆ BASIC

sc_core::sc_event NeurerProcessor::BASIC

< Provide basic frequencies for neurons, at fixed rate

< 10 Hz


The documentation for this class was generated from the following file:
